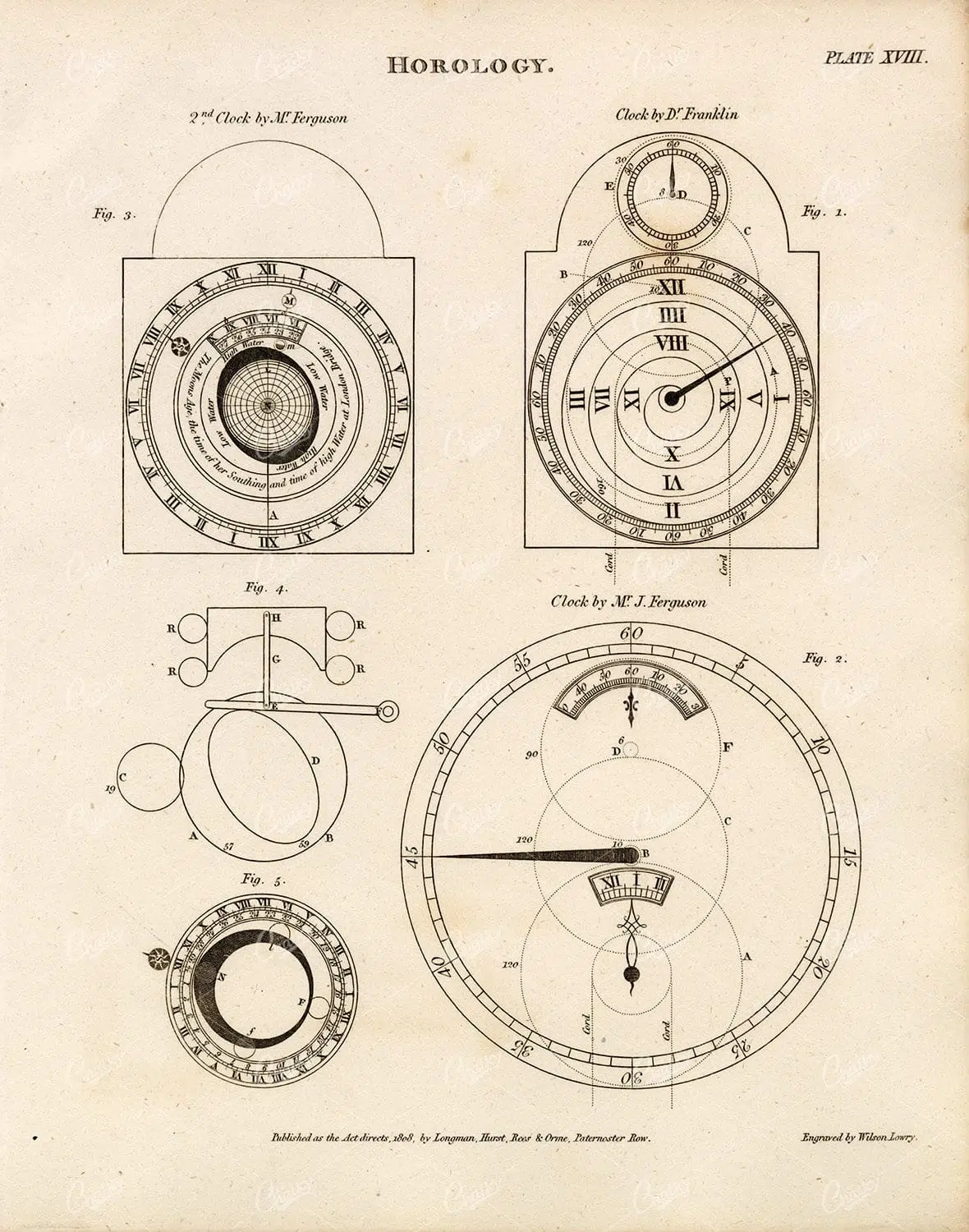

Clock Face Diagrams – Horology Technical Plate with Roman Numerals
Engraved technical plate showing multiple clock face designs, including tidal clocks and astronomical timepieces attributed to Ferguson and Franklin. The detailed Roman numeral dials and mechanical diagrams make this ideal for steampunk projects, watch branding, or scientific poster designs
Details
- Resolution
- 9435px x 7409px
- Year
- 1800s
- Format
- JPG
- Artist
- Abraham Rees
- Downloads
- 12 total
Counting since May 2026
